APPLICATION

BURYCABLE FirePro 450/750V Mica XLPE LSZH cable is designed for fixed installations where project-specific circuit integrity under fire conditions is required. The product range is available with two, three, four or five insulated copper cores. Typical project environments include hospitals, hotels, high-rise buildings, airports, metro facilities, power stations and other critical infrastructure. Each insulated core incorporates a mica glass tape fire barrier beneath the XLPE insulation. The mica layer helps preserve electrical insulation during fire exposure. The LSZH outer sheath helps limit smoke emission and halogen acid gas release during burning. The conductors may be Class 1 solid or Class 2 stranded copper, depending on the selected core size and construction. An optional extruded inner covering may be used around the laid-up cores to provide a practically circular cable assembly. This construction does not include a separate bare copper circuit protective conductor (CPC). Where a protective conductor is required, the core configuration and colour identification must be selected according to the circuit design. The basic cable design is adapted from BS 7211. The applicable edition, fire test method, classification and duration must be confirmed against the project specification and supporting cable test documentation. This is an unarmoured cable intended for fixed installation. Provide additional mechanical protection where required by the installation conditions. Cable supports, joints and terminations should be selected to suit the required fire-resistant wiring system. Select the cable according to voltage rating, number of cores, conductor size, conductor class, installation conditions and project fire performance requirements.

STANDARDS

Basic design adapted from BS 7211:2012

FIRE PERFORMANCE

FIRE PERFORMANCE NOTE

BS 6387 is applicable to relevant cables

with an overall diameter not exceeding 20 mm.

BS 8491 is applicable to large-diameter

power cables with an overall diameter

greater than 20 mm when used for smoke

and heat control systems or certain other

active fire safety systems.

The appropriate test standard therefore

depends on the cable size and intended use.

IEC 60331-21 is retained only as a legacy

catalogue reference.

The applicable standard edition,

test classification and fire duration

must be confirmed against project requirements

and the relevant cable test report.

A specific CWZ classification,

BS 8491 category or fire duration

must not be assumed from the product name

or the presence of mica tape alone.

VOLTAGE RATING

450/750V

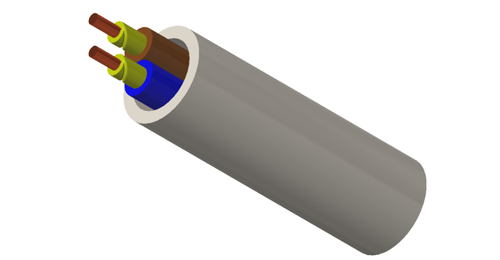

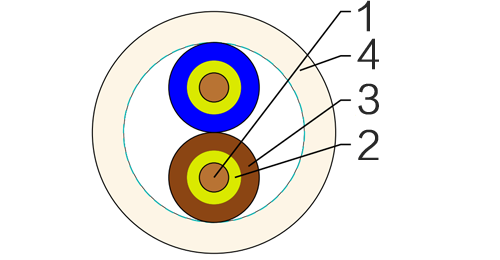

CABLE CONSTRUCTION

Conductor : Annealed copper conductor, solid or stranded according to BS EN 60228 class 1 or class 2.

Fire Barrier : Mica glass tape.

Insulation : XLPE type GP 8 according to BS 7655-1.3. Crosslinked polyolefin material type EI 5 according to EN 50363-5 can be offered as option.

Inner Covering Option : The optional inner covering, where used, shall consist of an extruded layer of synthetic polymeric material. It shall surround the laid-up two, three, four or five cores, giving the assembly a practically circular shape.

Outer Sheath : Extruded LSZH type LTS 4 according to BS 7655-6.1.

Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour :

2-core : Brown and blue.

3-core : Brown, black and grey.

4-core : Blue, brown black and grey.

5-core : Green/yellow, blue, brown black and grey.

Sheath Colour : White; other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation : 90°C

Maximum short circuit temperature (5 Seconds) : 250°C

Minimum bending radius :

OD<8mm : 4 × Overall Diameter

8mm≤OD≤12mm : 5 × Overall Diameter

OD>12mm : 6 × Overall Diameter

CONSTRUCTION PARAMETERS

ELECTRICAL PROPERTIES

Conductor operating temperature : 90°C

Ambient temperature : 30°C

CURRENT-CARRYING CAPACITIES (AMP) ACCORDING TO BS 7671:2008 TABLE 4E2A

Note: *With or without a protective conductor.

VOLTAGE DROP (PER AMP PER METER) ACCORDING TO BS 7671:2008 TABLE 4E2B

KEY FEATURES

- 450/750V rated voltage

- Two to five insulated copper cores

- Class 1 solid or Class 2 stranded conductors

- Mica glass tape fire barrier on each core

- XLPE insulation

- Optional extruded inner covering

- LSZH type LTS 4 outer sheath

- Low smoke zero halogen performance

- No separate bare copper CPC

- Unarmoured construction

- Basic design adapted from BS 7211

- Intended for fixed installation

- Fire performance confirmed for each cable size

SELECTION NOTES

For quotation, provide the number of cores,

conductor cross-sectional area,

conductor class and total cable length.

Confirm whether Class 1 solid

or Class 2 stranded conductors are required.

Provide the required circuit integrity

test standard, classification and duration.

The appropriate test method depends on

the cable overall diameter and intended use.

Confirm whether the selected cable size

falls within the scope of BS 6387

or BS 8491.

Also confirm insulation colours,

sheath colour, installation environment,

packing requirements and delivery destination.

This construction does not contain

a separate bare copper CPC.

Where a protective conductor is required,

select the appropriate insulated core

configuration or provide a separate

protective conductor according to

the installation design.

Outdoor exposure, wet locations,

underground routes and chemical exposure

require separate assessment.

Additional UV, oil, hydrocarbon,

rodent or termite resistance must be

specified and confirmed before supply.

For a fire-resistant wiring system,

assess the cable together with supports,

joints, glands and terminations.
